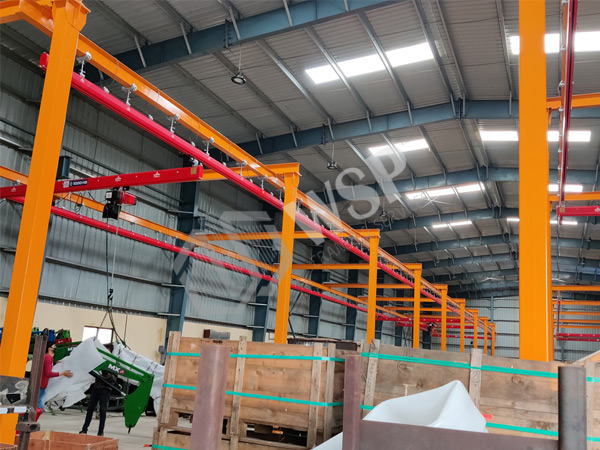

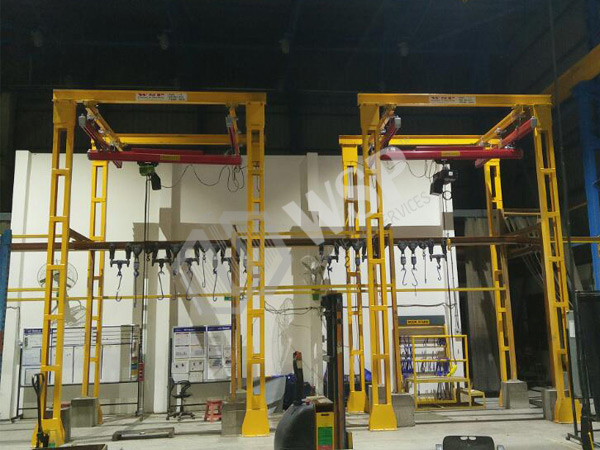

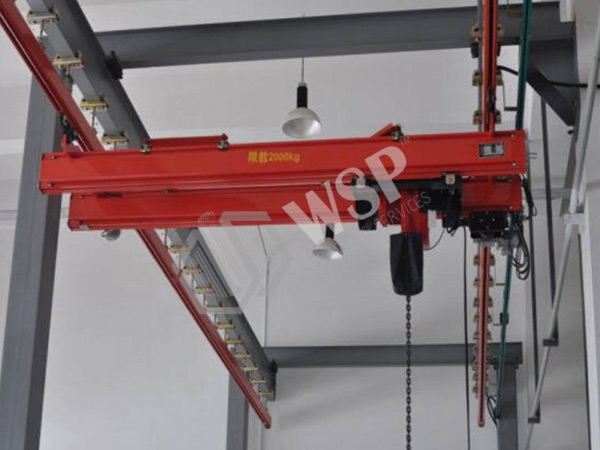

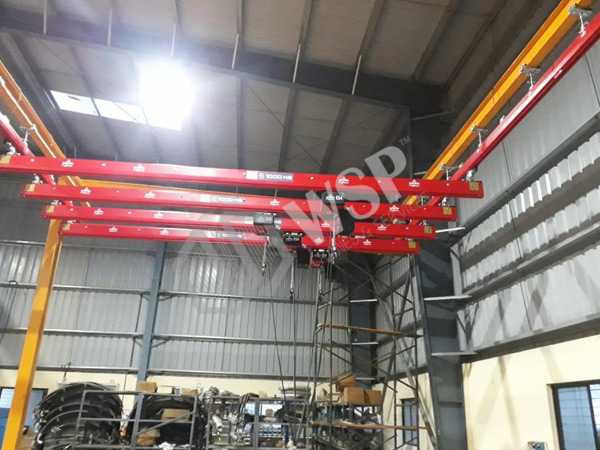

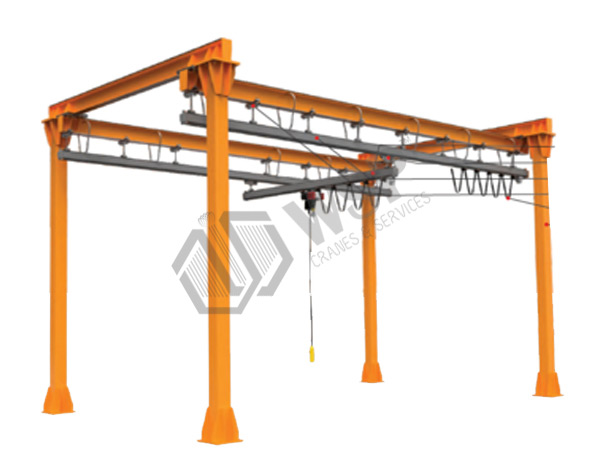

Light Crane System

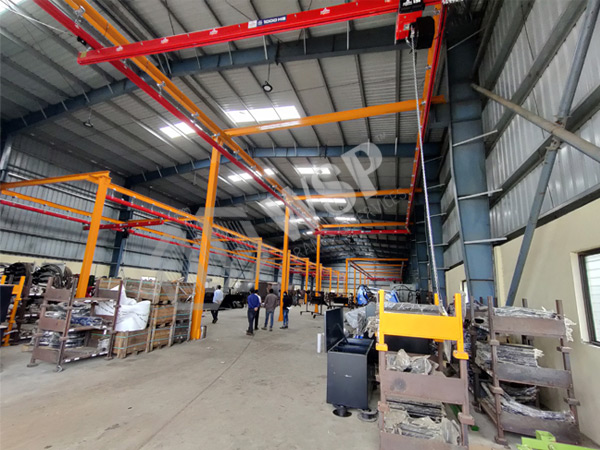

We are Manufacturer, Supplier, Exporter, Services Provider of Light Crane System, Light Weight Crane Systems, Light Rail Systems, Light Rail Cranes, KBK Cranes, LRS Systems, Aluminium Light Rail Cranes and our setup is situated in Pune, Maharashtra, India. Light crane system offers many possibilities for Ergonomic handling loads quickly, Exact positioning, safely and efficiently above the working and production level. High flexibility of the system enables installations to be integrated easily.

Trolleys / Crabs

Trolleys / Crabs

Double Girder EOT Cranes

Double Girder EOT Cranes

Double Girder EOT Cranes

Double Girder EOT Cranes

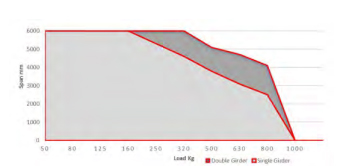

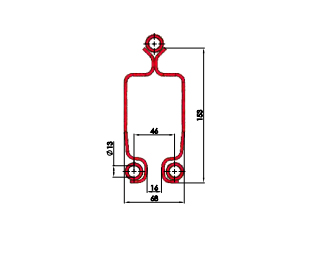

CSP 1

Trolleys / Crabs

Profile	CSP 1
Weight (kg/m)	10
Area (mm2)	1228.82
lx (mm4)	276x10^4
Zx (mm3)	35029.82

Trolleys / Crabs

Trolleys / Crabs

Effective range : For short Spans and Suspensions distance.
Capacity : 50 Kg to 800Kg.
Used as both single girder and double girder.

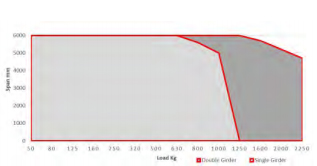

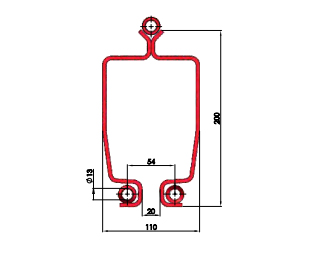

CSP 2

Trolleys / Crabs

Profile	CSP 2
Weight (kg/m)	18.4
Area (mm2)	2323.06
lx (mm4)	950x10^4
Zx (mm3)	94292.8

Trolleys / Crabs

Trolleys / Crabs

Effective range : For Normal Spans and Suspensions distance.
Capacity : 125 Kg to 2000Kg.
Used as both single girder and double girder.
Applicable for Internal Bus Bar & Curved Profiles

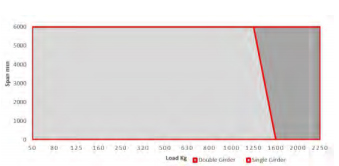

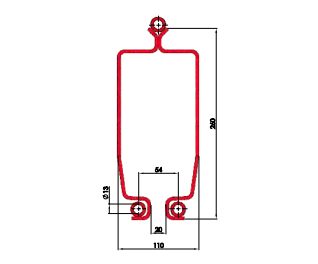

CSP 3

Trolleys / Crabs

Profile	CSP 3
Weight (kg/m)	22.5
Area (mm2)	2803.06
lx (mm4)	1978x10^4
Zx (mm3)	151524.43

Trolleys / Crabs

Trolleys / Crabs

Effective range : For Long Spans and Suspensions distance
Capacity : 500 Kg to 2000Kg
Used as both single girder and double girder.
Applicable for Internal Bus Bar & Curved Profiles
